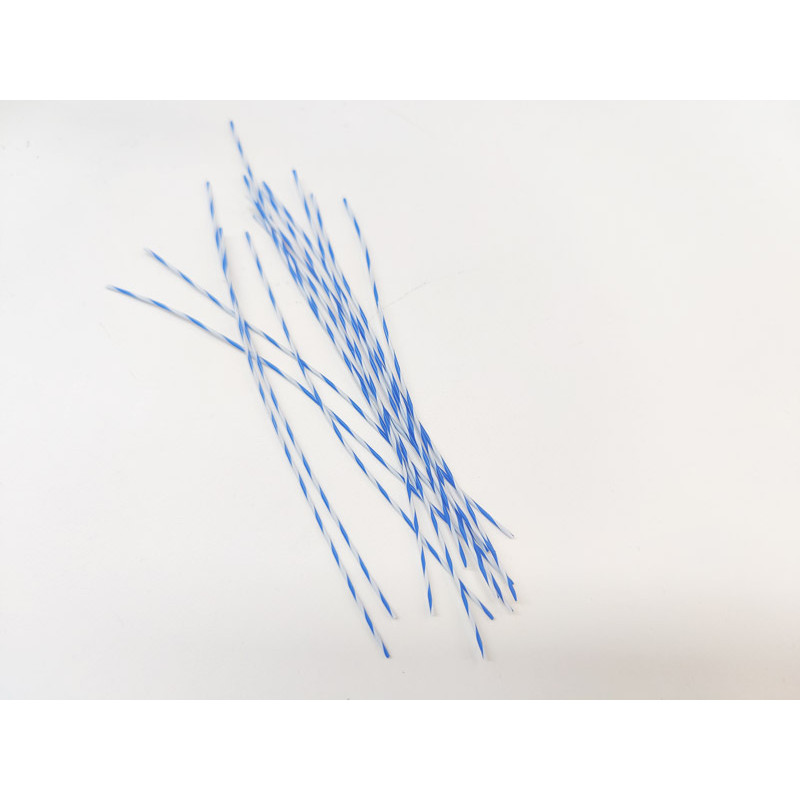

SUKO Plastic supplies PTFE zebra guidewires for medical device manufacturers, catheter developers, distributors, and minimally invasive equipment projects. The guidewire combines a smooth PTFE outer layer with a stainless steel or nitinol core. This construction supports controlled handling, smooth catheter navigation, and flexible access through curved or narrow pathways.
The PTFE outer layer provides low surface friction and a smooth finish. It helps reduce resistance during insertion and withdrawal when the guidewire works with a compatible catheter. The striped surface also improves visual identification during operation. Blue-and-white and yellow-and-blue patterns are common options, while custom color combinations can be discussed for private-label and device-integration projects.
SUKO Plastic can coordinate guidewire specifications according to the target device and application. Customers can select the core material, guidewire diameter, overall length, distal-tip design, flexible-tip section, color pattern, coating, packaging, and labeling. Straight, angled, curved, and other customized tip configurations are available.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | PTFE Zebra Guidewire |
| Outer Material | Medical-grade PTFE |
| Core Material | Stainless steel or nitinol |
| Diameter | 0.021 in, 0.025 in, 0.035 in, 0.038 in, or custom |
| Length | Custom length available |
| Tip Design | Straight, angled, curved, or custom tip |
| Color Pattern | Blue and white, yellow and blue, or custom colors |
| Applications | Endoscopic procedures, catheter guidance, biliary access, urinary access, and minimally invasive device projects |
| Quality Support | ISO 13485:2016 quality management support, ISO 10993 biocompatibility evaluation support, and Class 10,000 cleanroom production capability |
Stainless Steel and Nitinol Core Options
SUKO Plastic provides two core-material options for different handling requirements. Stainless steel offers strong support and direct torque response. Nitinol provides higher flexibility, better kink resistance, and improved elastic recovery.
| Comparison | Stainless Steel Core | Nitinol Core |
|---|---|---|
| Support | Strong support and clear pushing feedback | Flexible support with smoother adaptation |
| Torque Response | Direct rotational response | Smooth rotational movement |
| Flexibility | Moderate | High |
| Kink Resistance | May deform after excessive bending | Better kink resistance and recovery |
| Shape Recovery | Limited shape-memory effect | Superelasticity and shape-memory properties |
| Suitable Use | Pathways requiring pushability and direct feedback | Curved, narrow, or complex pathways |
Custom Medical Device Support
SUKO Plastic supports custom medical-device components from product definition to sample development and repeat supply. Our team can coordinate material selection, core-wire configuration, PTFE coating, stripe pattern, tip design, packaging, and labeling.
For related fluoropolymer products, explore our PTFE products and custom components. To discuss a guidewire project, please send the required diameter, length, core material, tip design, compatible catheter, color pattern, packaging requirements, and order quantity.
