Insulating pure ptfe skived sheet

New Insulating pure ptfe skived sheet

Material: PTFE

Kind: Hard Plastic Sheet

Water Absorption: 0.1%~0.3%

Contraction Percentage: 0.4%~1.4%

Tensile Strength: (30~40)MPa

Color: White

Size: Width0.5m-2m Thick1mm-100mm

Packaging: woven bag

Productivity: 500kg By day

Transportation: Ocean,Land,Air

Place of Origin: changzhou

Supply Ability: 500kg By day

Certificate: ISO9001:2008

HS Code: 3920991000

Port: Dalian,Ningbo,Shanghai

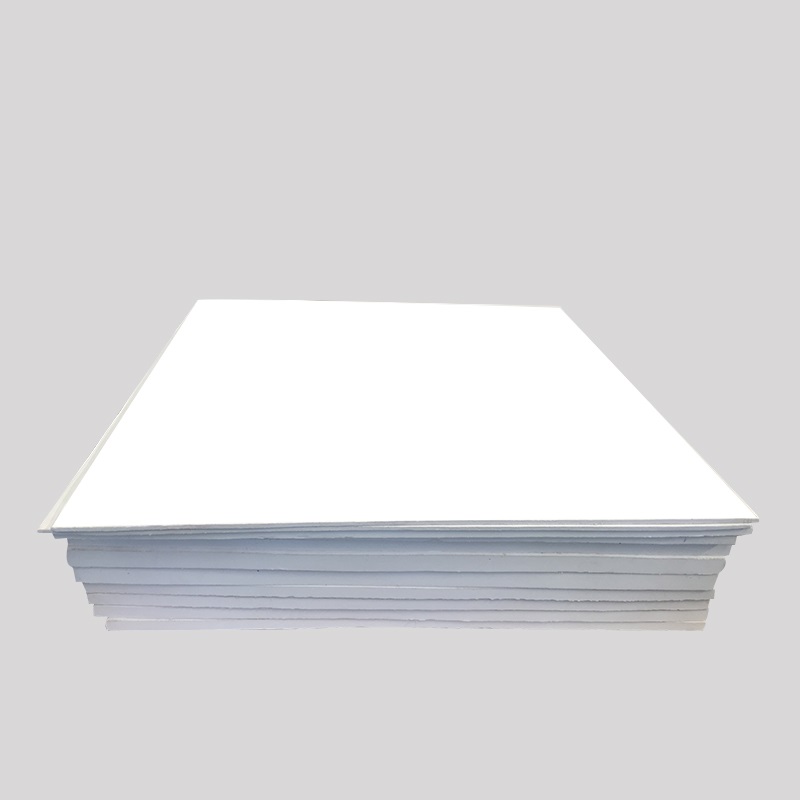

PTFE skived Sheet is made of suspended and compound ptfe resins molded and skived. It has the best features of chemical corrosive resistance and anti-aging in the plastics; and it has the best coefficient of friction in the solid material; and used in the temperature of - 180 - 260 ℃ under non load.


Specifications

length*width Thickness mm
nominal tolerance

150*150 mm 0.3-100 mm ±0.30.5
250*250 mm 0.3-100 mm ±0.30.5
300*300 mm 0.3-100 mm ±0.30.5
500*500 mm 0.3-100 mm ±0.30.5
600*600 mm 0.3-100 mm ±0.30.5
700*700 mm 0.3-100 mm ±0.30.5
800*800 mm 0.3-100 mm ±0.30.5
1000*1000mm 0.3-100 mm ±0.30.5
1200*1200mm 0.3-100 mm ±0.30.5
1500*1500mm 0.3-100 mm ±0.30.5
2000mm*2000mm 0.3-100 mm ±0.30.5

Main technical index

items unit index



density g/cm3 2.10~2.30



Tensile MPa 15
strength


Elongation at % 150
break


Dielectric Kv/mm 10
strength


Applications

Corrosion resistant materials and seals, supporting block, guide, electrical insulating parts.

Packing

1) 1-2 days if goods in stock
2) 10-15 days if goods out of stock with molding
Port of Loading Dalian port
Terms of Shipping By Express, Air, Sea etc.
Terms of Payment, T/T in advance,etc.
